NJT5669F C-Band 5W BUC Output Power (P1dB): +37 dBm min.C-band: 5.85 to 6.425 GHz Palapa C-band: 6.365 to 6.725 GHz Full C-band: 5.85 to 6.725 GHz Insat C-band: 6.725 to 7.025 GHz
Universal Ku-band: 13.75 to 14.5 GHz Standard Ku-band: 14.0 to 14.5 GHz P1dB: +37.8 dBm min. over temperature ・ Power Consumption: 40 W

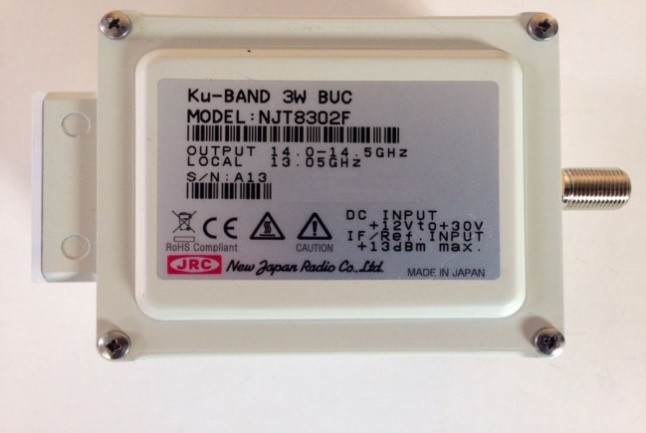

NJRC 3W BUC NJT 8302UF 14.0 to 14.5 GHz (Standard Ku-band)13.05 GHz 950 to 1,450 MHz 3W Linear (+35 dBm typ.)

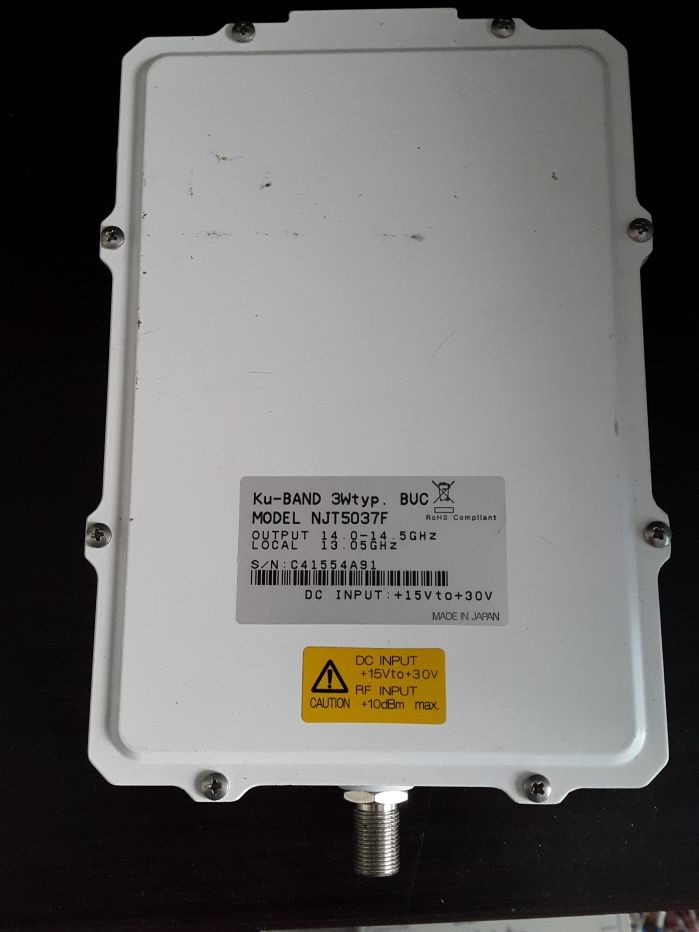

NJRC 3W BUC NJT 5037 F 14.0 to 14.5 GHz (Standard Ku-band)13.05 GHz 950 to 1,450 MHz 3W Linear (+35 dBm typ.)
13.75 to 14.5 GHz P1dB: +39 dBm min. over temperature IM3: -28 dBc @ Pout = +36 dBm Power Consumption: 79 W Wider Input Voltage Range Voltage Range: +18 to +60 VDC AC Power Operating Option
NJR2843-SN Local Frequency: 9.75 / 10.6 GHz RF Frequency: 10.7 to 12.75 GHz(10.7 to 11.7 GHz / 11.7 to 12.75 GHz)

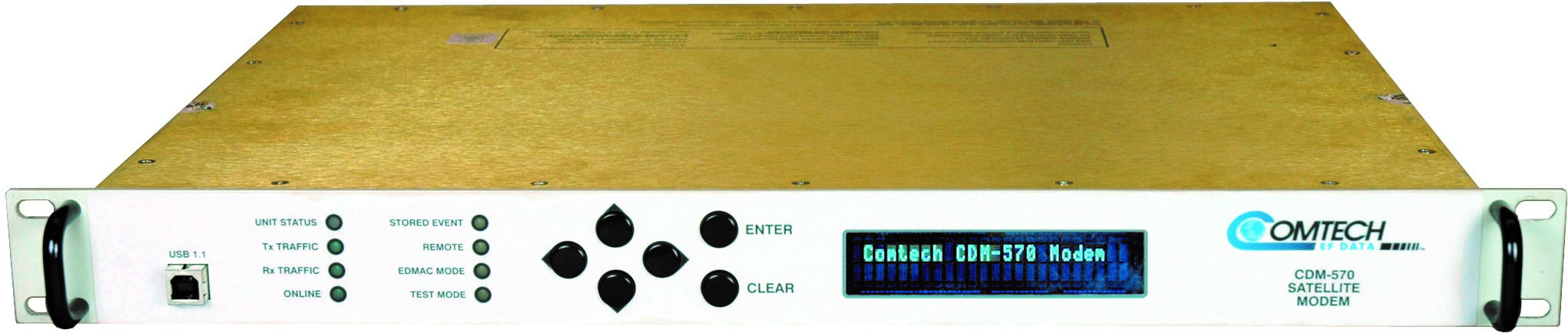

CDM570L,L-Band-100-240 VAC Input power,24VDC BUC power supply, 2.4 Kbps-512 Kbps Data RateTPC,QPSK Turbo FEC,IP,V.35, Data Interface
